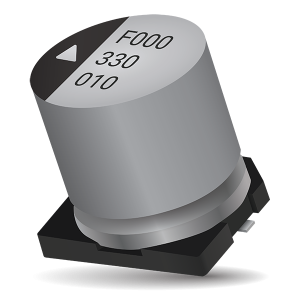

The new surface-mount AEF Series wet aluminum V-chip capacitors are available in 11 different case sizes with capacitance and voltage ratings spanning 2.2–470μF and 6.3–400VDC. They exhibit industrial endurance and low DCL, ESR, and impedance and are ideal for high-density industrial and consumer electronics applications including lighting and DC/DC converters.
KYOCERA AVX has released the new surface-mount AEF Series wet aluminum V-chip electrolytic capacitors, which are designed for industrial and consumer electronics applications with high-density PCBs and qualified to industrial endurance levels. The series is available in 11 different case sizes spanning 0608 to 1216 and offers a wide range of capacitance values and voltage ratings extending from 2.2–470μF and 6.3–400VDC. It also exhibits low direct current leakage (DCL), low equivalent series resistance (ESR), which enables higher tolerance for ripple currents, low impedance over the full range of category temperatures, which extend from -40°C or -55°C to +105°C, and exceptional reliability over extended lifetimes of up to 6,000 hours at +105°C and rated voltages. In total, the new AEF Series wet aluminum electrolytic capacitors currently provides customers with a selection of 59 part numbers ideally suited for an extensive range of high-density industrial and consumer electronics ranging from lighting systems to DC/DC converters.
Features & Benefits
-Endurance, 105°C, and 6,000 Hours
-Designed for Surface Mounting on High Density PC Board
-RoHS Compliant
-AEC-Q200 Tested
Typical Applications
-Industrial
-Consumer Electronics
-Lighting
-DC/DC Converters
